Automatic High Speed Bottle Unscrambler

Automatic High Speed Bottle Unscrambler

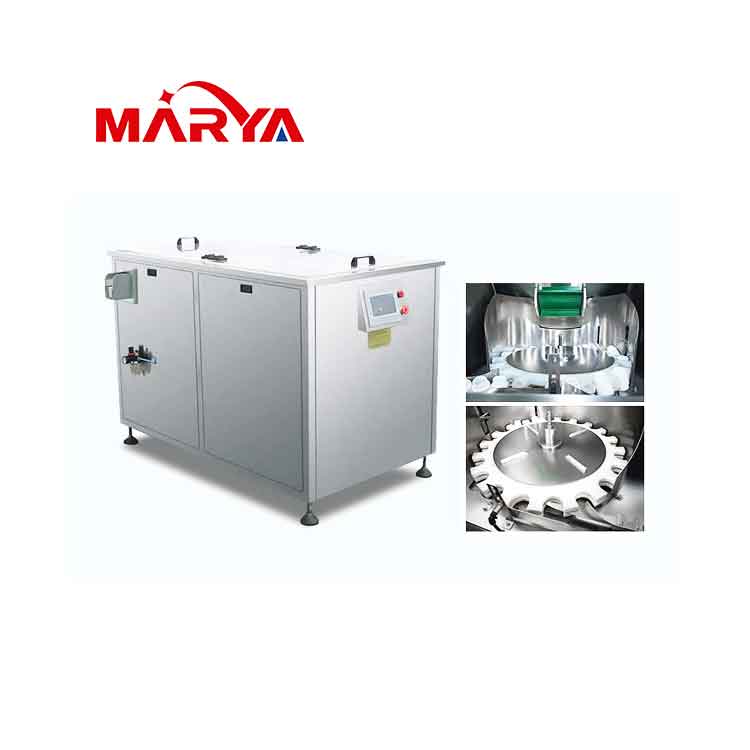

Automatic bottle unscrambler is used for automatic alignment, orientation and transportation of all kinds of plastic bottles, round bottles, square bottles and special-shaped bottles (can share a set of molds). It is the most advanced and efficient bottle unscrambler device in China. It can be widely used in pharmaceutical, chemical, food and beverage industries, and can be matched with different automatic packaging production lines.

,

1. Product feature

  • Automatic bottle unscrambler is electromechanical integration equipment, convenient operation, simple maintenance, reliable operation.
  • Pharmaceutical bottle unscrambler is suitable for various specifications and shapes of bottle unscramble, more efficient and applicable range is wider.
  • Stainless steel body and transparent protective cover can be isolated from the outside of dust pollution, at the same time provide perfect security protection.
  • Control using PLC, frequency control of motor speed.
  • Automated operation and process of intelligent spreading, need not specialist operations, saving artificial.
  • Optional electrostatic to clutter removal system, can clean for the bottle.
  • Bottle unscramber machine is equipped with a bottle of quantitative control detection and excessive overload protection device.
  • Frame and material barrel is made of high quality stainless steel material, beautiful appearance, in line with the GMP requirements.
  • No need to blow bottles with air source, using automatic anti-bottle mechanism, and equipped with bottle collecting device, improve production efficiency.

2. Technical parameters:

  • Production speed: 60-300 bottles/min (specific production according to the bottle specification).
  • Bottle specification: 400 ml biggest.
  • Bottle height: 10 mm – 250 mm.
  • Air pressure: 0.5 to 0.7 Mpa.
  • Power: 50-60 hz, 220 v, 2.2 kw.
  • Dimensions: 2700 * 1300 * 1500 mm.
  • Weight: 650 kg.
